Overview

TalkifAI supports full telephony integration — connect a real phone number to your agent and start receiving or making calls immediately. Primary carrier support:

Twilio (fully tested and documented)

Other SIP-compatible carriers (may work with custom configuration):

Telnyx
Plivo
SignalWire
Bandwidth
Vonage

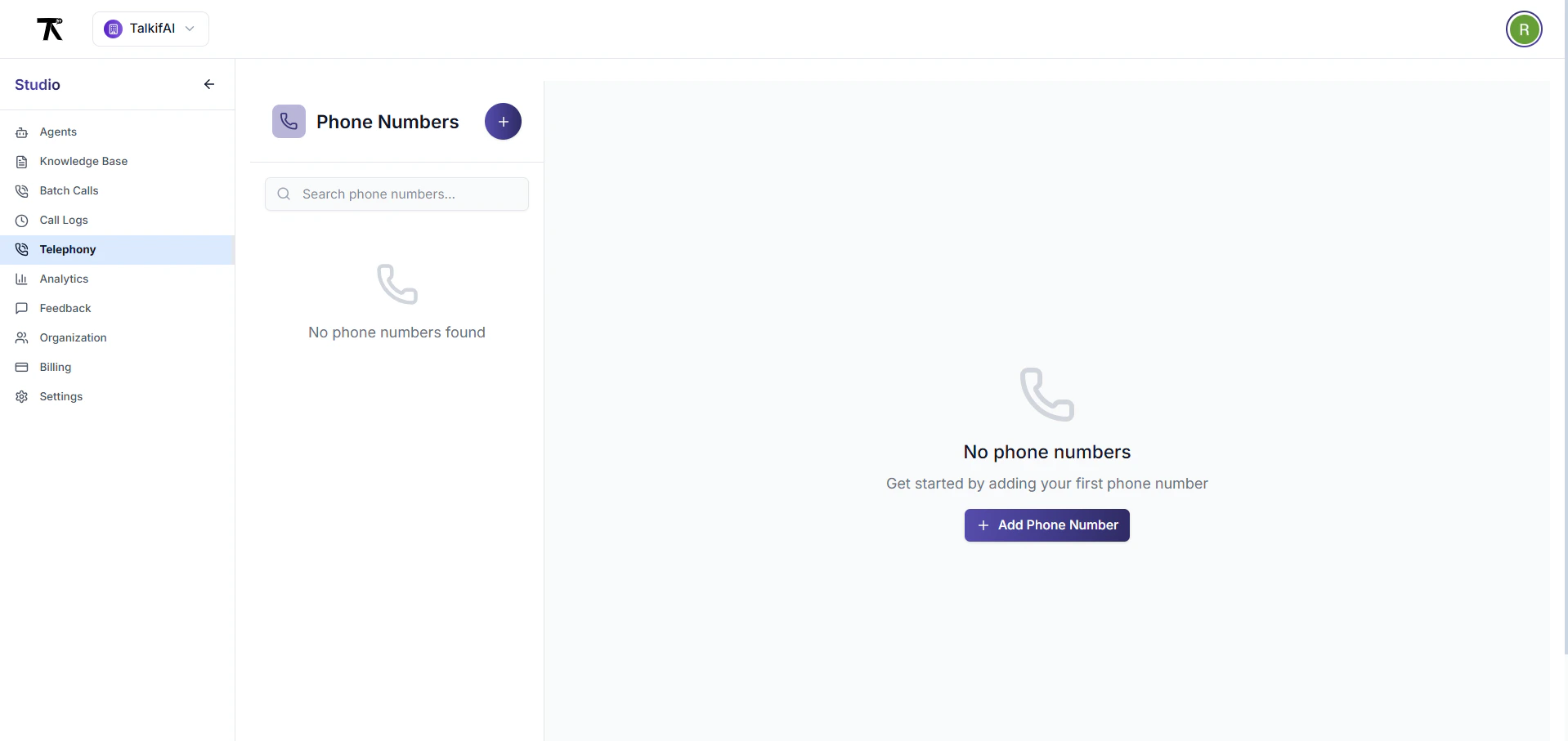

Studio Phone Numbers Page

Navigation: Studio → Telephony (or Studio → Phone Numbers) URL: /telephony Access: Owners and Admins can manage phone numbers. Members can view and use assigned numbers.

Page Layout

The Phone Numbers page has a two-column layout:

Width: 320px (fixed) Sections:

Header
- Icon: Phone icon (purple background)
- Title: “Phone Numbers”
- Add Button: Plus icon (blue, circular, top-right)
Search Bar
- Placeholder: “Search phone numbers…”
- Icon: Search icon (left side)
- Filters by:
  - Phone number
  - Inbound agent name
  - Outbound agent name
Phone Numbers List
- Scrollable list of all phone numbers
- Each number shows:
  - Phone Number (bold, truncated if long)
  - Status Badge (green = active, gray = inactive)
  - Inbound Agent (agent name + mode)
  - Outbound Agent (agent name + mode)
- Selected State: Blue background with blue border
- Hover State: Light gray background
Action Buttons (per number)
- Edit Button (pencil icon)
  - Opens edit dialog
  - Edit number details
- Delete Button (trash icon)
  - Red on hover
  - Requires confirmation

Empty State:

Phone icon (gray, large)
Text: “No phone numbers found”
Action: Click “Add Phone Number” button

Right Column: Phone Number Details (Main Content)

When No Number Selected:

Phone icon (gray, 64x64)
Text: “Select a phone number” or “No phone numbers”
Subtext: Instructions
Add Button: “Add Phone Number” (if no numbers exist)

When Number Selected: Top Bar:

Phone Number (large, bold)
Status Badge (green/gray)
ID: Internal phone number ID
Test Call Button: Green “Make Test Call” button
- Links to /demo-call
- Opens demo call page

Configuration Cards: Card 1: Inbound Call Configuration

Title: “Inbound Call Configuration”
Field: “Inbound Call Agent” dropdown
- Shows all available agents
- Format: “Agent Name (mode)”
- Current selection shown below
Save: Included in main save button

Card 2: Outbound Call Configuration

Title: “Outbound Call Configuration”
Field: “Outbound Call Agent” dropdown
- Shows all available agents
- Format: “Agent Name (mode)”
- Current selection shown below
Save: Included in main save button

Card 3: Call Settings

Title: “Call Settings”
Field 1: “Webhook URL”
- Input field
- Copy button (clipboard icon)
- Placeholder: “https://your-webhook-url.com/webhook”
Field 2: “Call Recording”
- Dropdown options:
  - Disabled
  - Record all calls
  - Record with consent

Save Button:

Location: Below configuration cards
Text: “Save Agent Assignments”
Icon: Save icon
Loading State: Shows spinner, “Saving…”
Success: Toast notification

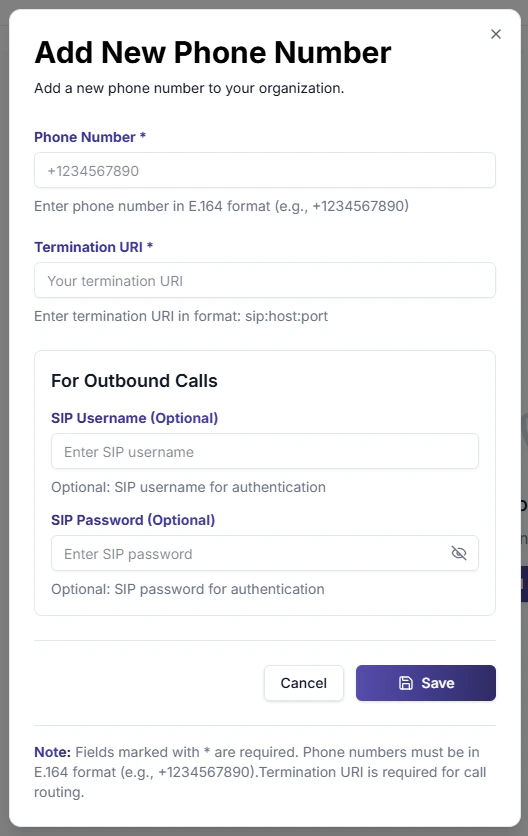

Add/Edit Phone Number Dialog

Trigger: Click “Add Phone Number” (+) button or Edit (pencil) button Dialog Title:

Add: “Add Phone Number”
Edit: “Edit Phone Number”

Form Fields:

Field	Required	Description
Phone Number	✅	E.164 format (+1234567890)
Termination URI	✅	SIP URI for outbound (e.g., `your-trunk.pstn.twilio.com`)
SIP Username	❌	For outbound authentication
SIP Password	❌	For outbound authentication (encrypted)

Buttons:

Cancel: Closes dialog, no changes
Save: Validates and saves number
- Shows loading spinner
- Toast on success/error
- Refreshes list on success

Validation:

Phone number must be in E.164 format
Must start with +
Minimum 10 digits after +
Termination URI must be valid URL

Delete Phone Number

Process:

Click trash icon on phone number
Confirmation dialog appears:
- “Are you sure you want to delete phone number +1234567890?”
- “This action cannot be undone.”
Click Confirm or Cancel
If confirmed:
- Calls backend API to delete
- Removes from local state
- Shows success toast
- Selects next number or shows empty state

What Gets Deleted:

Phone number record
Associated SIP trunks in LiveKit
Agent assignments
Call history (preserved in database)

Save Agent Assignments

Process:

Select inbound agent from dropdown
Select outbound agent from dropdown
Click “Save Agent Assignments”

Sends PUT request to backend:

{
  "phone_number": "+1234567890",
  "inbound_agent_id": "agent_abc123",
  "outbound_agent_id": "agent_def456"
}

Shows loading state
Success toast: “Agent assignments saved successfully”
Refreshes data

Validation:

At least one agent must be selected
Agent must be Pipeline or Realtime architecture
Text agents cannot be assigned

Search & Filter

Search Functionality:

Real-time filtering
Case-insensitive
Searches:
- Phone number string
- Inbound agent name
- Outbound agent name

Example Searches:

+1202 → Finds all numbers starting with +1202
Support → Finds numbers with “Support” agent assigned
Sales → Finds numbers with “Sales” agent assigned

Status Badges

Status	Color	Meaning
Active	Green	Number is configured and can receive/make calls
Inactive	Gray	Number is not fully configured

Active Requirements:

✅ Phone number added
✅ Termination URI set
✅ At least one agent assigned (inbound or outbound)
✅ SIP credentials configured (for outbound)

Keyboard Shortcuts

Not currently implemented Future:

N — New phone number
Ctrl+F — Focus search
Delete — Delete selected number
Enter — Save changes

Mobile Responsiveness

Desktop (≥1024px):

Two-column layout (sidebar + main)
Full configuration cards visible
All fields accessible

Tablet (768px - 1023px):

Sidebar collapses to icons only
Main content takes full width
Cards stack vertically

Mobile (under 768px):

Sidebar becomes drawer (slide-in)
Hamburger menu to toggle
Cards full width
Simplified form fields

Real-Time Updates

Auto-Refresh:

Refreshes when organization changes
Listens for agentUpdated events
Manual refresh via reload

Cross-Tab Sync:

Uses CustomEvent for communication
Events:
- phoneNumberAdded
- phoneNumberUpdated
- phoneNumberDeleted

Error States

No Organization Selected:

Yellow warning box
Text: “Please select an organization first”
Action: Select organization from sidebar

API Error:

Toast notification
Error message from backend
Retry option

Validation Error:

Inline error messages
Red border on invalid fields
Helper text below field

Inbound Calling

Allow customers to call your agent on a real phone number.

How it works

Customer dials phone number
        │
        ▼
   Carrier (Twilio/Telnyx/etc.)
        │  SIP
        ▼
   LiveKit SIP Server
        │
        ▼
   Voice Agent Runtime
        │
        ▼
   AI Agent joins the call

Setup with Twilio

Create a SIP Trunk

Go to Twilio Console → Elastic SIP Trunking → Trunks → Create Trunk
Set Friendly Name: e.g., TalkifAI
Note the Termination SIP URI (e.g., your-trunk.pstn.twilio.com)

Set Origination URI

In your trunk → Origination section, add:

sip:livekit.talkifai.dev:5061;transport=tls

The ;transport=tls suffix enables Secure SIP (TLS). Required for production deployments.

Add Phone Number in TalkifAI Studio

Go to Studio → Phone Numbers → Add Number
Enter your Twilio phone number in E.164 format (e.g., +1234567890)
Enter the Termination URI from your Twilio trunk
Optionally enter SIP username and password (for outbound authentication)
Click Save

Assign an Inbound Agent

In the Phone Numbers list, select your phone number
Under Inbound Agent, select the agent that should answer incoming calls
Click Save

Configure Twilio Routing

Go to Twilio Console → Phone Numbers → Manage → Active Numbers
Select your Twilio phone number
Under Voice Configuration:
- Configure with: SIP Trunk
- SIP Trunk: Select your trunk (e.g., “TalkifAI”)
Click Save

Test

Call your phone number. The agent should answer within 2-3 seconds.

Outbound Calling

Programmatically call any phone number from your agent.

Prerequisites

Outbound Trunk: Configure an outbound SIP trunk in your carrier console
SIP Credentials: Create SIP username/password for authentication
IP ACL: Add your VM’s public IP address to the carrier’s allowed list
Phone Number: Add the phone number in TalkifAI Studio with SIP credentials

Configure Outbound Calling

Set Up Carrier Authentication

For Twilio:

Go to Elastic SIP Trunking → Manage → Credential Lists
Create a credential list with username/password
Go to IP ACL and add your VM’s public IP address

Add Phone Number with Credentials

In Studio → Phone Numbers → Add Number
Enter phone number in E.164 format
Enter Termination URI (your Twilio trunk URI)
Enter SIP Username and SIP Password (from your credential list)
Click Save

Assign an Outbound Agent

Select the phone number in the list
Under Outbound Agent, select the agent to use for outgoing calls
Click Save

Text-only agents cannot make voice calls. Only Pipeline or Realtime architecture agents can be used for outbound calling.

Configure Twilio Routing

In your Twilio trunk → Termination section:
- Set Termination SIP URI: livekit.talkifai.dev:5061 (or your LiveKit SIP server)
- Assign your credential list and IP ACL

Via Dashboard

Go to Studio → Phone Numbers
Select a number with an outbound agent configured
Click Make Call
Enter the destination number in E.164 format (e.g., +12025550123)

Via API

The telephony API is exposed via the backend service, not the Studio API. You’ll need to call the backend directly.

POST /telephony/outbound-call
Content-Type: application/json

{
  "to_number": "+12025550123",
  "from_number": "+1234567890"
}

Parameters:

Field	Type	Required	Description
`to_number`	string	✅	Destination phone number in E.164 format
`from_number`	string	✅	Source phone number (must be registered in TalkifAI with an outbound agent)

Response:

{
  "success": true,
  "message": "Call initiated successfully",
  "room_name": "outbound_agent_abc123_12025550123_1234567890",
  "agent": {
    "id": "agent_abc123",
    "name": "Sales Agent"
  },
  "from_number": "+1234567890",
  "to_number": "+12025550123"
}

Error Responses:

Status Code	Error	Description
`400`	Invalid number	Phone number format is invalid
`402`	Insufficient balance	Carrier account has insufficient funds
`404`	Phone number not found	The `from_number` is not registered in TalkifAI
`408`	Timeout / No answer	Call was not answered
`500`	Server error	Internal error initiating the call

Managing Phone Numbers

Phone Number Fields

Field	Required	Description
Number	✅	Phone number in E.164 format (e.g., `+1234567890`)
Termination URI	✅	SIP URI for outbound calls (from your carrier)
SIP Username	❌	Username for SIP authentication (outbound)
SIP Password	❌	Password for SIP authentication (outbound, encrypted)
Inbound Agent	❌	Agent to answer incoming calls
Outbound Agent	❌	Agent to use for outgoing calls

Assigning Agents

Each phone number can have:

Inbound Agent — Handles incoming calls (answered when someone calls this number)
Outbound Agent — Used for outgoing calls (when calling from this number)

You can assign different agents to the same number for inbound/outbound, or leave one unassigned.

Text-only agents cannot make or receive voice calls. Only assign Pipeline or Realtime architecture agents to phone numbers.

Deleting a Phone Number

Deleting a phone number will also delete associated SIP trunks and dispatch rules in LiveKit. This action cannot be undone.

Go to Studio → Phone Numbers
Select the phone number
Click the Delete button
Confirm deletion

BYOC (Bring Your Own Carrier)

If you have an existing SIP infrastructure, use BYOC to connect it to TalkifAI without porting numbers. What BYOC gives you:

Connect your existing Twilio/Telnyx/Plivo accounts
Use your own SIP trunks and phone numbers
Pay carriers directly (no markup from TalkifAI)
Full control over SIP configuration

Requirements:

SIP trunk from your carrier
SIP credentials (username/password)
LiveKit SIP server configured (self-hosted or cloud)

See the full guide: BYOC Setup

Credential Security

All SIP credentials (passwords, auth tokens) are encrypted using Fernet encryption before storage in the database. Never share your raw credentials in logs, chat, or support tickets.

How it works:

Credentials are encrypted with a FERNET_KEY environment variable
Encrypted data is stored in the PhoneNumber table (sipPassword field)
The encryption key is set once during deployment and should never be changed after credentials are saved
If you lose the FERNET_KEY, all stored credentials will be unrecoverable

Best practices:

Store your FERNET_KEY in a secure secrets manager
Never commit the key to version control
Rotate credentials periodically (not the encryption key)
Use different credentials for production and development

Carrier-Specific Configuration

Twilio

Console Links:

Secure Trunking (TLS):

Enable Secure Trunking in your trunk’s General Settings

Add ;transport=tls to your Origination URI:

sip:livekit.talkifai.dev:5061;transport=tls

For outbound trunks, set:

"transport": "SIP_TRANSPORT_TLS",
"media_encryption": "SIP_MEDIA_ENCRYPT_REQUIRE"

International Calling:

Go to Voice → Settings → Geo Permissions
Enable the countries you want to call

Telnyx

Telnyx configuration is similar to Twilio. Use the Telnyx Mission Control Portal to configure SIP trunks and phone numbers.

Key differences:

Telnyx uses “Outbound Profiles” instead of credential lists
IP ACL is configured per outbound profile
Authentication can be IP-based or credential-based

SignalWire

SignalWire is compatible with Twilio’s API in many cases. You may be able to use Twilio’s configuration as a reference.

Troubleshooting

Call not connecting

Check:

SIP trunk origination URI is correct (sip:livekit.talkifai.dev:5061;transport=tls)
Phone number is assigned to an inbound agent
Twilio number is configured to use your SIP trunk
LiveKit SIP server is running and accessible

Outbound call fails with 404

Cause: The from_number is not registered in TalkifAI or has no outbound agent assigned.Fix:

Go to Studio → Phone Numbers
Add the phone number if it doesn’t exist
Assign an outbound agent
Ensure SIP credentials are configured

Outbound call fails with 402

Cause: Insufficient balance in your carrier account.Fix: Add funds to your Twilio/Telnyx account and retry.

SIP authentication fails

Check:

SIP username/password are correct
Credential list is assigned to the trunk
IP ACL includes your VM’s public IP address
Credentials are properly encrypted (check FERNET_KEY is set correctly)

Text agent assigned to phone number

Error: “Agent is a text-only agent and cannot make voice calls”Fix: Assign a Pipeline or Realtime architecture agent instead. Text agents only support chat, not voice calls.

API Reference

For programmatic access, see:

BYOC Setup — Connect your own SIP carrier
Agent Architecture — Understand Pipeline vs Realtime vs Text
LiveKit SIP — LiveKit SIP documentation

​Overview

​Studio Phone Numbers Page

​Page Layout

​Left Column: Phone Numbers List (Sidebar)

​Right Column: Phone Number Details (Main Content)

​Add/Edit Phone Number Dialog

​Delete Phone Number

​Save Agent Assignments

​Search & Filter

​Status Badges

​Keyboard Shortcuts

​Mobile Responsiveness

​Real-Time Updates

​Error States

​Inbound Calling

​How it works

​Setup with Twilio

​Outbound Calling

​Prerequisites

​Configure Outbound Calling

​Via Dashboard

​Via API

​Managing Phone Numbers

​Phone Number Fields

​Assigning Agents

​Deleting a Phone Number

​BYOC (Bring Your Own Carrier)

​Credential Security

​Carrier-Specific Configuration

​Twilio

​Telnyx

​SignalWire

​Troubleshooting

​API Reference

​Related Guides

Overview

Studio Phone Numbers Page

Page Layout

Left Column: Phone Numbers List (Sidebar)

Right Column: Phone Number Details (Main Content)

Add/Edit Phone Number Dialog

Delete Phone Number

Save Agent Assignments

Search & Filter

Status Badges

Keyboard Shortcuts

Mobile Responsiveness

Real-Time Updates

Error States

Inbound Calling

How it works

Setup with Twilio

Outbound Calling

Prerequisites

Configure Outbound Calling

Via Dashboard

Via API

Managing Phone Numbers

Phone Number Fields

Assigning Agents

Deleting a Phone Number

BYOC (Bring Your Own Carrier)

Credential Security

Carrier-Specific Configuration

Twilio

Telnyx

SignalWire

Troubleshooting

API Reference

Related Guides
