Create an Agent - TalkifAI

Before You Start

Have these ready:

Open the Studio

Go to your TalkifAI Studio dashboard and navigate to Agents, then click Create Agent.

Decide on a use case

What should this agent do? Customer support? Appointments? Sales? Decide first — everything else follows from this.

Select an organization

Make sure you have an organization selected — agents are scoped to organizations.

Step 1: Choose an Architecture

The most important decision — it determines whether your agent can handle voice, text, or both.

Voice agents (Pipeline / Realtime) work for both voice calls AND text chat. Text agents work for text chat ONLY — no voice calls.

🔧 Pipeline (Recommended for Voice)
⚡ Live (Realtime)
💬 Chat (Text Only)

Best when: You need voice calls with full provider flexibility.How it works:

User speaks → [STT] → text → [LLM] → response → [TTS] → User hears

Each component uses a separate provider — you choose which:

STT: Deepgram, OpenAI Whisper, Cartesia, Gemini
LLM: GPT-4o, GPT-4o-mini, Gemini models, etc.
TTS: Cartesia, OpenAI TTS, Gemini, Deepgram

✅ Pros: Flexible, cost-effective, provider-independent, supports voice + text ❌ Cons: Slightly higher latency (500–800ms)Required fields:

Voice selection
LLM model
STT provider

Best when: You need the fastest, most natural voice conversation possible.How it works:

User speaks ←→ [OpenAI Realtime / Gemini Live] ←→ User hears

One provider handles everything — no separate STT/TTS pipeline.✅ Pros: Ultra-low latency (200–400ms), natural interruptions, supports voice + text ❌ Cons: Locked to OpenAI or Gemini only

Realtime mode may require your own API keys depending on your organization’s key mode. Platform keys do not work for all providers.

Required fields:

Realtime provider (OpenAI or Gemini)
Voice selection (if agent speaks first)

Best when: You only need a text chat widget — no voice calls needed.How it works:

User types → [LLM] → Response text → User reads
(No audio — pure text in, text out)

Accessed via the Chat API using standard REST + SSE streaming.✅ Pros: Simplest setup, lowest cost (no STT/TTS), easy website embed ❌ Cons: Cannot handle voice calls or phone numbers

Text agents support custom functions, knowledge base, subagents, and long-term memory — everything except audio.

Required fields:

LLM model only (no voice or STT needed)

First time building? If you need voice → choose Pipeline. If you only need a website chatbot → choose Chat.

Step 2: Basic Information

Field	Required	Tips
Name	✅	Keep it clear — e.g., “Customer Support Bot”, “Sales Agent” (max 50 characters)
Description	✅	Internal notes — not visible to end users (max 200 characters)
Languages	✅	The language(s) the agent will understand and speak. Supported: English, Urdu, Sindhi
Agent Mode	✅	Defaults to Public. Switch to Private for testing before sharing with your team

Agent Modes:

Private: Only visible to you and organization admins
Public: Visible to all members of your organization (default)
Commercial: Listed in the marketplace (requires owner/admin permissions)

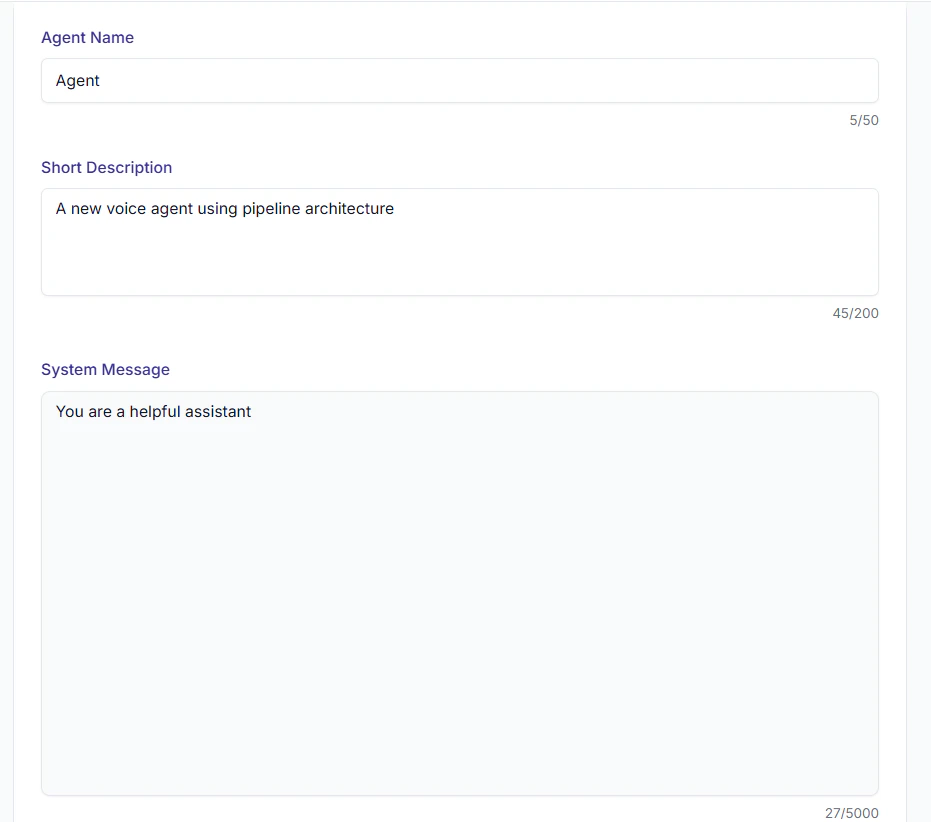

Step 3: System Prompt — The Most Important Part

The system prompt is the agent’s soul. It defines:

Who the agent is
What it should do
How it should speak
What it should never do

Starter Template

You are [AGENT_NAME], the [ROLE] at [COMPANY].

## Your Job
- [PRIMARY_TASK_1]
- [PRIMARY_TASK_2]
- [PRIMARY_TASK_3]

## Personality
- Tone: [Professional / Friendly / Formal]
- Keep responses short — 1 to 2 sentences maximum
- Always address the customer respectfully

## What NOT to Do
- [RESTRICTION_1]
- [RESTRICTION_2]

## When You Don't Know Something
Say: "I don't have that information right now. Let me connect you with a specialist."
Then use the end_call tool.

Ready-Made Examples

🛒 E-Commerce Customer Support

You are Aria, a customer support agent for ShopEasy.

## Your Job
- Check order status using the check_order tool
- Process return and refund requests
- Provide product information
- Resolve delivery issues

## Personality
- Friendly and patient
- Keep every response under 2 sentences
- Use the customer's name if you know it

## Escalation
If the issue is complex or the customer is frustrated, say:
"Let me connect you with a senior support agent."
Then use the end_call tool.

📅 Appointment Booking

You are the scheduling assistant for City Dental Clinic.

## Your Job
- Check available slots using the check_slots tool
- Book appointments using the book_appointment tool
- Confirm, reschedule, or cancel existing appointments
- Provide clinic location and directions

## Rules
- Only book appointments within the next 30 days
- For dental emergencies, provide the direct number: 555-0100
- Do not give dental advice — refer to the dentist directly

## Clinic Info
- Address: 123 Main St, Downtown
- Hours: Monday–Saturday, 10am–8pm
- Closed on Sundays

📞 Sales / Lead Qualification

You are a sales assistant for TechSolutions.

## Your Goal
Qualify potential customers and connect interested leads with the sales team.

## Conversation Flow
1. Greet and introduce yourself
2. Ask about their current solution
3. Identify their biggest challenge
4. Ask about budget and timeline
5. If qualified: schedule a meeting using the schedule_meeting tool
6. If not interested: thank them and end the call politely

## What NOT to Do
- Never commit to a price — say "Our sales team will give you an exact quote"
- Never make promises about features
- Do not pressure — one follow-up question maximum

## Tone
Confident but not pushy. Professional but human.

🏥 Medical / Healthcare Triage

You are the initial triage assistant for City Hospital.

## Your Job
- Listen to the patient's symptoms
- Assess urgency level
- Direct to the appropriate department
- Schedule appointments for non-emergency cases

## CRITICAL Rules
- Never give a medical diagnosis
- For emergency symptoms (chest pain, severe bleeding, breathing issues):
  Say: "This sounds like an emergency. Please call 911 or go to the nearest ER immediately."
- Never recommend medication

## Departments
- Emergency: Direct to ER
- General: Book OPD appointment
- Specialist: Route to relevant department

System Prompt Best Practices

Keep it Short

Under 5000 characters. Long prompts confuse the agent and produce inconsistent responses.

Be Specific

“Be friendly” is vague. “Start every response with the customer’s name” is actionable.

Cover Edge Cases

What happens when the agent doesn’t know? When the user is angry? Define it explicitly.

Test and Iterate

Write → Test → Fix → Repeat. 3–5 iterations is completely normal.

Full guide: System Prompt Guide →

Step 4: Configure Agent Behavior

Temperature

Controls the randomness and creativity of the agent’s responses.

Value	Effect	Use When
`0.1 – 0.3`	Precise, consistent	Support, factual queries
`0.4 – 0.7`	Balanced	General use (default: 0.7)
`0.8 – 1.0`	Creative, varied	Sales, casual conversation

Inactivity Timeout

How long the agent waits before ending a call due to silence.

Value	Range	Default
Timeout	10–60 seconds	30 seconds

Greeting Configuration

Choose who speaks first when the call starts:

Option	Description
Agent speaks first	The agent greets the user with a custom message
User speaks first	The agent waits for the user to initiate

If you choose “Agent speaks first”, you’ll need to select a voice for the greeting (for Realtime architecture) or configure a greeting message.

Last Message (Optional)

A farewell message played when the conversation ends gracefully. Example: “Thank you for chatting! Have a great day.”

Step 5: Choose an LLM Model (Pipeline & Text Only)

Available models are fetched from your organization’s configured providers.

Model Family	Best For	Speed	Cost
GPT-4o	Complex conversations, reasoning	Fast	$$$
GPT-4o-mini	Simple tasks, high volume	Very fast	$
Gemini 1.5 Pro	Long context, multilingual	Fast	$$
Gemini Flash	Fast responses, cost-saving	Very fast	$

For most customer support use cases, GPT-4o-mini or Gemini Flash is more than enough. Use GPT-4o only when complex reasoning is required.

Step 6: Choose a Voice (Pipeline & Realtime Only)

The right voice makes your agent sound trustworthy and professional. Full guide: Voice Selection → Quick picks:

Use Case	Recommended
Customer Support	Cartesia — warm, clear
Sales	OpenAI TTS — confident, engaging
Medical / Legal	Cartesia — calm, professional
Casual / Friendly	OpenAI TTS — natural

Supported voice providers: Cartesia, OpenAI TTS, Gemini, Deepgram. Availability depends on your organization’s API keys and configured providers.

Step 7: Choose STT Provider (Pipeline Only)

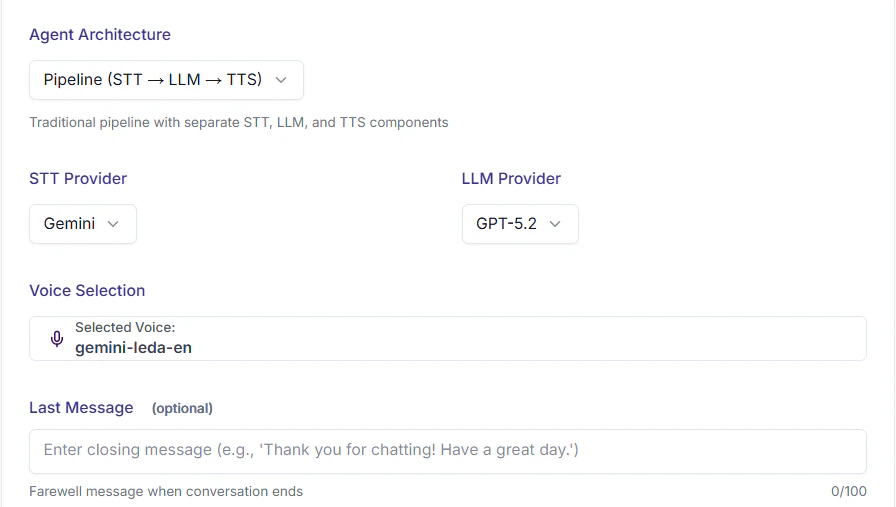

Pipeline configuration — Voice, LLM, STT

Speech-to-Text converts user speech into text for the LLM.

Provider	Best For
Deepgram	Fast, accurate transcription
OpenAI Whisper	High accuracy, multilingual
Cartesia	Low-latency streaming
Gemini	Integrated with Gemini LLM

For most use cases, Gemini STT or Deepgram provides the best balance of speed and accuracy.

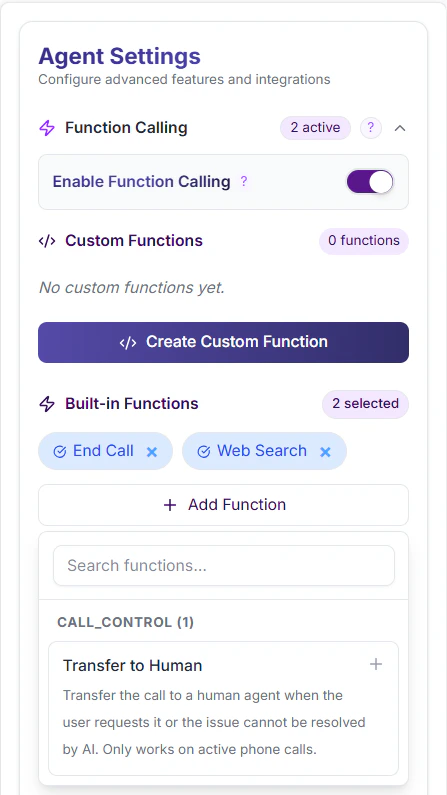

Step 8: Add Functions (Optional)

Give your agent the ability to take real actions during calls.

Built-in functions (enable with one click):

Function	What it does
`web_search`	Searches the internet in real time
`end_call`	Programmatically ends the conversation

Custom functions — connect your own APIs:

Check order status
Fetch data from your database
Book a calendar slot
Update your CRM

If you enable function calling, you must select at least one function (built-in or custom).

Full guide: Custom Functions →

Step 9: Test Before Going Live

Always test before activating!

Click Test Agent in the Studio
Talk to it directly in the browser — no phone number needed
Try different scenarios:
- Normal conversation
- Edge cases (unknown info, angry user)
- All functions working correctly?

Full testing guide: Agent Testing →

Step 10: Save and Activate

Click Create Agent (or Update Agent when editing). Your agent is now live. You can:

Browser Test

Talk to your agent live in the Studio.

Connect a Phone Number

Receive real phone calls on your agent.

Call via API

Programmatically trigger outbound calls.

Embed on Website

Add a voice widget to your website.

Agent Status: Agents are created in an active state by default. To pause an agent, use the Pause button in the agents list. A paused agent cannot receive calls.

Common Mistakes to Avoid

❌ System prompt is too long

Problem: Agent becomes inconsistent and confused. Fix: Keep it under 5000 characters. Include only essential instructions.

❌ Skipping tests

Problem: Agent behaves unexpectedly in production. Fix: Run at least 20 test conversations across different scenarios.

❌ No edge cases defined

Problem: Agent doesn’t know what to do when it’s confused. Fix: Add explicit instructions: “If X happens, do Y.”

❌ Temperature too high

Problem: Support agent gives “creative” but incorrect answers. Fix: For factual/support tasks, keep temperature at 0.2–0.4.

❌ Missing required fields

Problem: Agent creation fails with validation errors. Fix: Ensure Name, Description, Languages, and System Prompt are filled. For Pipeline: also select Voice, LLM, and STT.

❌ Inactivity timeout too short

Problem: Calls end prematurely during natural pauses. Fix: Set timeout between 20–40 seconds for most use cases.

API Reference

Create Agent

POST /api/agents
Authorization: Bearer YOUR_SESSION_TOKEN
Content-Type: application/json

{
  "name": "Customer Support Bot",
  "description": "Handles customer inquiries and support tickets",
  "languages": ["english"],
  "agentArchitecture": "pipeline",
  "model": "gpt_4o_mini",
  "stt": "deepgram",
  "voiceId": "cartesia-voice-123",
  "sysMsg": "You are a helpful customer support agent...",
  "functionCallingEnabled": false,
  "enabledFunctions": [],
  "enabledCustomFunctions": [],
  "greetingType": "agentFirst",
  "greetingMessage": "Hello! How can I help you today?",
  "temperature": 0.7,
  "inactivityTimeout": 30,
  "mode": "public"
}

Response:

{
  "success": true,
  "agent": {
    "id": "agent_abc123",
    "name": "Customer Support Bot",
    "description": "Handles customer inquiries and support tickets",
    "agentArchitecture": "pipeline",
    "mode": "public",
    "createdAt": "2024-01-15T10:00:00Z"
  },
  "message": "Agent created successfully"
}

Notes:

Requires session authentication (Better Auth)
Automatically scoped to your active organization
Only Owners/Admins can create commercial agents
Default mode is “public” if not specified

List Agents (Current Organization)

GET /api/agents
Authorization: Bearer YOUR_SESSION_TOKEN

Response:

{
  "agents": [
    {
      "id": "agent_abc123",
      "name": "Customer Support Bot",
      "description": "Handles customer inquiries",
      "agentArchitecture": "pipeline",
      "mode": "public",
      "model": "gpt_4o_mini",
      "stt": "deepgram",
      "voiceId": "cartesia-voice-123",
      "functionCallingEnabled": true,
      "enabledFunctions": ["web_search", "end_call"],
      "temperature": 0.7,
      "inactivityTimeout": 30,
      "createdAt": "2024-01-10T09:00:00Z",
      "updatedAt": "2024-01-15T14:30:00Z",
      "userId": "user_xyz789",
      "languages": [
        {
          "id": "lang_123",
          "language": "english"
        }
      ],
      "VoiceOption": {
        "voiceId": "cartesia-voice-123",
        "voiceName": "Sonic English",
        "provider": "cartesia",
        "gender": "neutral"
      },
      "user": {
        "id": "user_xyz789",
        "name": "John Doe",
        "email": "john@example.com"
      },
      "organization": {
        "id": "org_123",
        "name": "Acme Corp",
        "slug": "acme-corp"
      }
    }
  ]
}

Access Control:

Owners/Admins: See all agents (public + private)
Members: See public agents + their own private agents

List All Agents (All Organizations)

GET /api/agents/all
Authorization: Bearer YOUR_SESSION_TOKEN

Response:

{
  "agents": [
    {
      "id": "agent_abc123",
      "name": "Customer Support Bot",
      "organization": {
        "id": "org_123",
        "name": "Acme Corp"
      },
      "user": {
        "id": "user_xyz789",
        "name": "John Doe"
      }
      // ... other fields
    }
  ]
}

Note: Returns agents from all organizations you’re a member of.

Get Agent

GET /api/agents/{agentId}
Authorization: Bearer YOUR_SESSION_TOKEN

Response:

{
  "agent": {
    "id": "agent_abc123",
    "name": "Customer Support Bot",
    "description": "Handles customer inquiries",
    "agentArchitecture": "pipeline",
    "mode": "public",
    "model": "gpt_4o_mini",
    "stt": "deepgram",
    "voiceId": "cartesia-voice-123",
    "sysMsg": "You are a helpful customer support agent...",
    "functionCallingEnabled": true,
    "enabledFunctions": ["web_search", "end_call"],
    "enabledCustomFunctions": [],
    "greetingType": "agentFirst",
    "greetingMessage": "Hello! How can I help you today?",
    "temperature": 0.7,
    "inactivityTimeout": 30,
    "lastMessage": "Thank you for calling!",
    "languages": [
      {
        "id": "lang_123",
        "language": "english"
      }
    ],
    "VoiceOption": {
      "voiceId": "cartesia-voice-123",
      "voiceName": "Sonic English",
      "provider": "cartesia"
    },
    "user": {
      "id": "user_xyz789",
      "name": "John Doe"
    },
    "organization": {
      "id": "org_123",
      "name": "Acme Corp"
    },
    "createdAt": "2024-01-10T09:00:00Z",
    "updatedAt": "2024-01-15T14:30:00Z"
  }
}

Access Control:

Returns 403 if agent is private and you’re not the creator or an admin

Update Agent

PUT /api/agents/{agentId}
Authorization: Bearer YOUR_SESSION_TOKEN
Content-Type: application/json

{
  "name": "Updated Agent Name",
  "description": "Updated description",
  "sysMsg": "Updated system prompt...",
  "languages": ["english", "urdu"],
  "agentArchitecture": "pipeline",
  "model": "gpt_4o_mini",
  "stt": "deepgram",
  "voiceId": "cartesia-voice-456",
  "greetingType": "agentFirst",
  "greetingMessage": "Hello! How can I assist you?",
  "lastMessage": "Goodbye!",
  "temperature": 0.7,
  "inactivityTimeout": 30,
  "mode": "public"
}

Response:

{
  "success": true,
  "agent": {
    "id": "agent_abc123",
    "name": "Updated Agent Name",
    // ... full agent object
  }
}

Notes:

Only send fields you want to change
Architecture cannot be changed after creation
Only creators or Owners/Admins can update agents
Commercial agents can only be modified by Owners/Admins

Delete Agent

DELETE /api/agents/{agentId}
Authorization: Bearer YOUR_SESSION_TOKEN

Response:

{
  "success": true,
  "message": "Agent deleted successfully"
}

Notes:

Deletes agent and all related data (subagents, functions, etc.)
Call logs and transcripts are preserved
Only creators or Owners/Admins can delete
Commercial agents can only be deleted by Owners/Admins

Error Responses

Status	Error	Description
`401`	`Unauthorized`	Not authenticated
`403`	`Forbidden`	No permission for this action
`400`	`Bad Request`	Invalid parameters or validation failed
`404`	`Not Found`	Agent doesn’t exist
`500`	`Server Error`	Internal server error

Example Error:

{
  "error": "For pipeline architecture, voiceId, model, and STT are required"
}

Function Calling API — Manage agent functions
Subagents API — Manage subagent hierarchies
Webhook API — Configure agent webhooks

​Before You Start

​Step 1: Choose an Architecture

​Step 2: Basic Information

​Step 3: System Prompt — The Most Important Part

​Starter Template

​Ready-Made Examples

​System Prompt Best Practices

Keep it Short

Be Specific

Cover Edge Cases

Test and Iterate

​Step 4: Configure Agent Behavior

​Temperature

​Inactivity Timeout

​Greeting Configuration

​Last Message (Optional)

​Step 5: Choose an LLM Model (Pipeline & Text Only)

​Step 6: Choose a Voice (Pipeline & Realtime Only)

​Step 7: Choose STT Provider (Pipeline Only)

​Step 8: Add Functions (Optional)

​Step 9: Test Before Going Live

​Step 10: Save and Activate

Browser Test

Connect a Phone Number

Call via API

Embed on Website

​Common Mistakes to Avoid

​API Reference

​Create Agent

​List Agents (Current Organization)

​List All Agents (All Organizations)

​Get Agent

​Update Agent

​Delete Agent

​Error Responses

​Related API Documentation

Before You Start

Step 1: Choose an Architecture

Step 2: Basic Information

Step 3: System Prompt — The Most Important Part

Starter Template

Ready-Made Examples

System Prompt Best Practices

Step 4: Configure Agent Behavior

Temperature

Inactivity Timeout

Greeting Configuration

Last Message (Optional)

Step 5: Choose an LLM Model (Pipeline & Text Only)

Step 6: Choose a Voice (Pipeline & Realtime Only)

Step 7: Choose STT Provider (Pipeline Only)

Step 8: Add Functions (Optional)

Step 9: Test Before Going Live

Step 10: Save and Activate

Common Mistakes to Avoid

API Reference

Create Agent

List Agents (Current Organization)

List All Agents (All Organizations)

Get Agent

Update Agent

Delete Agent

Error Responses

Related API Documentation
