Knowledge Base Integration

Overview

Knowledge Base integration allows your voice agent to access your company documents, FAQs, product manuals, and other information sources during conversations. Using RAG (Retrieval Augmented Generation), the agent automatically retrieves relevant information and incorporates it into responses. Best for:

Customer support with product documentation
Internal helpdesks with company policies
Technical support with manuals and guides
Any agent that needs accurate, up-to-date information

How It Works

User asks: "What's your return policy?"
         │
         ▼
   Agent searches linked Knowledge Bases
         │
         ▼
   Retrieves top 5 relevant chunks (similarity > 0.7)
         │
         ▼
   Injects context into LLM prompt
         │
         ▼
   Agent responds with accurate information from your docs

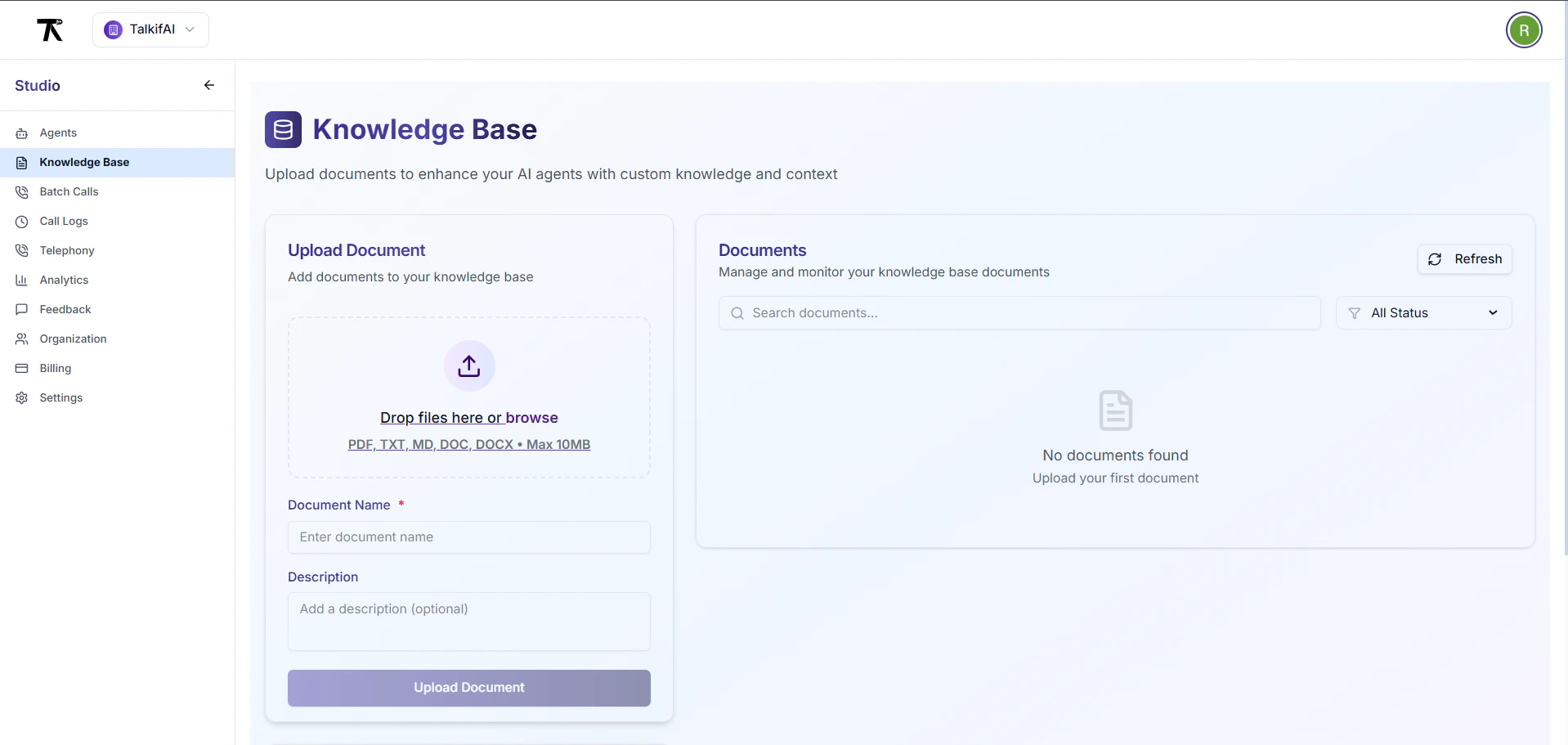

Step 1: Create a Knowledge Base

Upload Documents

Go to Studio → Knowledge Base → Create New
Fill in the details:

Field	Description
Name	Clear identifier (e.g., “Product Documentation 2024”)
Description	What this KB contains
File	Upload PDF, TXT, DOCX, or MD files
Chunk Size	How to split documents (default: 1000 characters)
Chunk Overlap	Overlap between chunks for context (default: 200 characters)

Click Upload & Process

Supported file types: PDF, TXT, DOCX, MD, CSV Max file size: 50MB per file (actual limit may vary by deployment) Processing time: Typically 1-5 minutes depending on file size and system load Chunk defaults: 1000 characters with 200 character overlap (configurable)

Document Processing

After upload, your document is automatically:

Chunked into smaller pieces based on your settings
Embedded using vector embeddings
Indexed for fast similarity search
Status changes from processing → ready

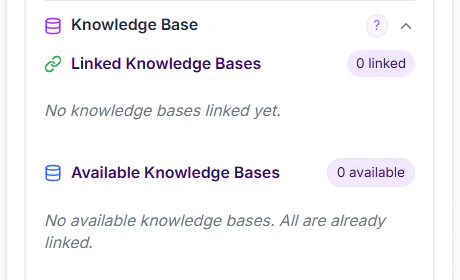

Step 2: Link Knowledge Base to Agent

Link via Studio

Go to Agent Settings → Knowledge Base
Click Link Knowledge Base
Select from available knowledge bases
Configure retrieval settings (see below)
Click Link

Link via API

POST /api/kb/{kbId}/link/{agentId}
Authorization: Bearer YOUR_API_KEY

{
  "organization_id": "org_xyz123"
}

Response:

{
  "success": true,
  "message": "Knowledge base linked successfully"
}

Step 3: Configure Retrieval Settings

After linking, configure how the agent searches your knowledge base:

Chunks to Retrieve

Default: 5 chunks

Value	Use Case
`3-5`	Simple FAQs, focused topics
`5-10`	Complex documentation, multiple topics
`10+`	Research papers, detailed technical docs

Too many chunks can confuse the agent and increase response latency. Start with 5 and adjust based on testing.UI Range: The Studio UI allows 1-10 chunks. For values outside this range, use the API.

Similarity Threshold

Default: 0.7 (range: 0.0 - 1.0)

Threshold	Behavior
`0.9+`	Very strict — only exact matches
`0.7-0.8`	Balanced — good for most use cases
`0.5-0.6`	Lenient — broader matches, may include irrelevant info
`< 0.5`	Not recommended — returns unrelated content

How it works:

User question is converted to vector embedding
System searches for chunks with similarity score > threshold
Higher threshold = more precise but may miss relevant info
Lower threshold = more results but may include noise

Update Settings via API

PATCH /api/kb/{kbId}/link/{agentId}/settings
Authorization: Bearer YOUR_API_KEY

{
  "chunks_to_retrieve": 7,
  "similarity_threshold": 0.75
}

Step 4: Update Agent System Prompt

Add instructions to use the knowledge base:

You have access to a knowledge base containing our product documentation.

## Using the Knowledge Base
- When asked about products, features, or policies, search the knowledge base first
- Always provide accurate information from the knowledge base
- If the knowledge base doesn't have the answer, say: "I don't have that information available. Let me connect you with a specialist."
- Quote specific documents when possible: "According to our Return Policy document..."

## Priority
Information from the knowledge base takes priority over your general knowledge.

Multiple Knowledge Bases

You can link multiple knowledge bases to a single agent: Example Setup:

Customer Support Agent
├── Product Documentation (chunks: 5, threshold: 0.7)
├── Return Policies (chunks: 3, threshold: 0.8)
└── FAQ Database (chunks: 5, threshold: 0.7)

Search Behavior:

Agent searches all linked knowledge bases simultaneously
Results are ranked by similarity score across all sources
Top N chunks are retrieved (based on “chunks to retrieve” setting)

Unlink Knowledge Base

Via Studio

Go to Agent Settings → Knowledge Base
Find the linked knowledge base
Click Unlink (trash icon)
Confirm unlinking

Via API

DELETE /api/kb/{kbId}/link/{agentId}
Authorization: Bearer YOUR_API_KEY

{
  "organization_id": "org_xyz123"
}

Unlinking doesn’t delete the knowledge base — it just removes the connection. The KB can be linked to other agents or re-linked later.

Best Practices

Organize by Topic

Create separate knowledge bases for different topics (e.g., “Product Docs”, “HR Policies”, “Technical Guides”). This makes retrieval more accurate.

Keep Documents Updated

Regularly update your knowledge base with current information. Outdated docs lead to incorrect answers.

Use Clear Structure

Documents with clear headings, sections, and formatting chunk better than unstructured text.

Test Retrieval

After linking, test with real questions. Adjust chunks/threshold if answers are incomplete or irrelevant.

Start Conservative

Begin with 5 chunks and 0.7 threshold. Increase chunks if answers lack context, decrease if responses are too long.

Remove Duplicates

Duplicate information across KBs confuses retrieval. Keep each piece of info in one place.

Troubleshooting

Agent isn't using the knowledge base

Check:

Is KB status ready (not processing)?
Is KB actually linked to the agent?
Does system prompt instruct agent to use KB?
Are chunks being retrieved? (Check agent logs)

Fix: Add explicit instructions: “Always search the knowledge base before answering questions about [topic].”

Answers are irrelevant or off-topic

Problem: Similarity threshold too low or chunks too large.Fix:

Increase threshold to 0.8 or 0.85
Reduce chunk size to 800 characters
Check if KB contains relevant content

Agent says 'I don't have that information'

Problem: Information not in KB or threshold too high.Fix:

Lower threshold to 0.6 or 0.65
Add the missing document to KB
Increase chunks to retrieve

Responses are too long or repetitive

Problem: Too many chunks retrieved.Fix:

Reduce chunks to retrieve (from 10 to 5, for example)
Add to prompt: “Keep responses concise — maximum 3 sentences”

API Reference

List Linked Knowledge Bases

GET /api/kb/agent/{agentId}/knowledge-bases?organization_id={orgId}

Response:

{
  "knowledge_bases": [
    {
      "kb_id": "kb_abc123",
      "kb_name": "Product Documentation",
      "status": "ready",
      "chunks_to_retrieve": 5,
      "similarity_threshold": 0.7,
      "chunk_count": 150
    }
  ]
}

List All Knowledge Bases

GET /api/kb?organization_id={orgId}

Next Steps

Create Knowledge Base

Upload your first document and start building your knowledge base.

Test Agent with KB

Test your agent with questions that require knowledge base lookup.

Custom Functions

Combine KB with custom functions for even more powerful agents.
